MR-IECEx Series
MR-IECEx Series Specifications
| Flow Rate | 558 gal/hr (1212 liters/hr) |
| Height | 45 in (115 cm) |
| Width | 46 in (117 cm) |
| Depth | 30 in (82 cm) |
| Fluid Pressure | 6-80 PSIG (0.5 to 5.5 Bar) |
| Fluid Temp.* | 65 to 200˚F (18 to 93˚C) |
| Fluid Viscosity* | 2 to 220 cSt @ 40˚C |
| Fluid Flash Point | >140˚F (60˚C) |
| Material | Marine Grade Materials |

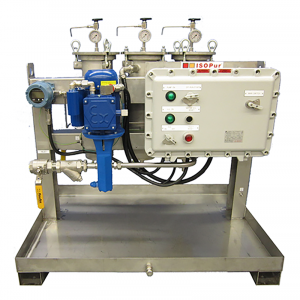

The Model Shown Above is CertifiedEx d IIB+H2T3 Gb Ta=0⁰ to 40⁰C
Call for Your Application
FEATURES
Sludge/varnish prevention
Fixed Flow Rate
Ex-proof certified
Removal of ferrous and non-ferrous contaminant
Push-button Controls
Single and 3-Phase Motors Available
Downloads
MR-IECEx FEATURES
The ISOPur MR IECEx Series is the smart purification solution with a flow rate of 558 GPH (2112 LPH).
The MR Series uses ISOPur’s patented Balanced Charge Agglomeration (BCA®) technology, which maintains hydraulic and lubricating fluids in pristine condition by preventing and removing the buildup of sludge, varnish, and contamination to sub-micron levels.
This IECEx MR is certified for use in explosive environments and corrosive environments. The frame, piping and vessles are 316 stainless steel for reliable operation in rugged offshore applications. The Aluminum enclosure is also available in 316 Stainless steel.
